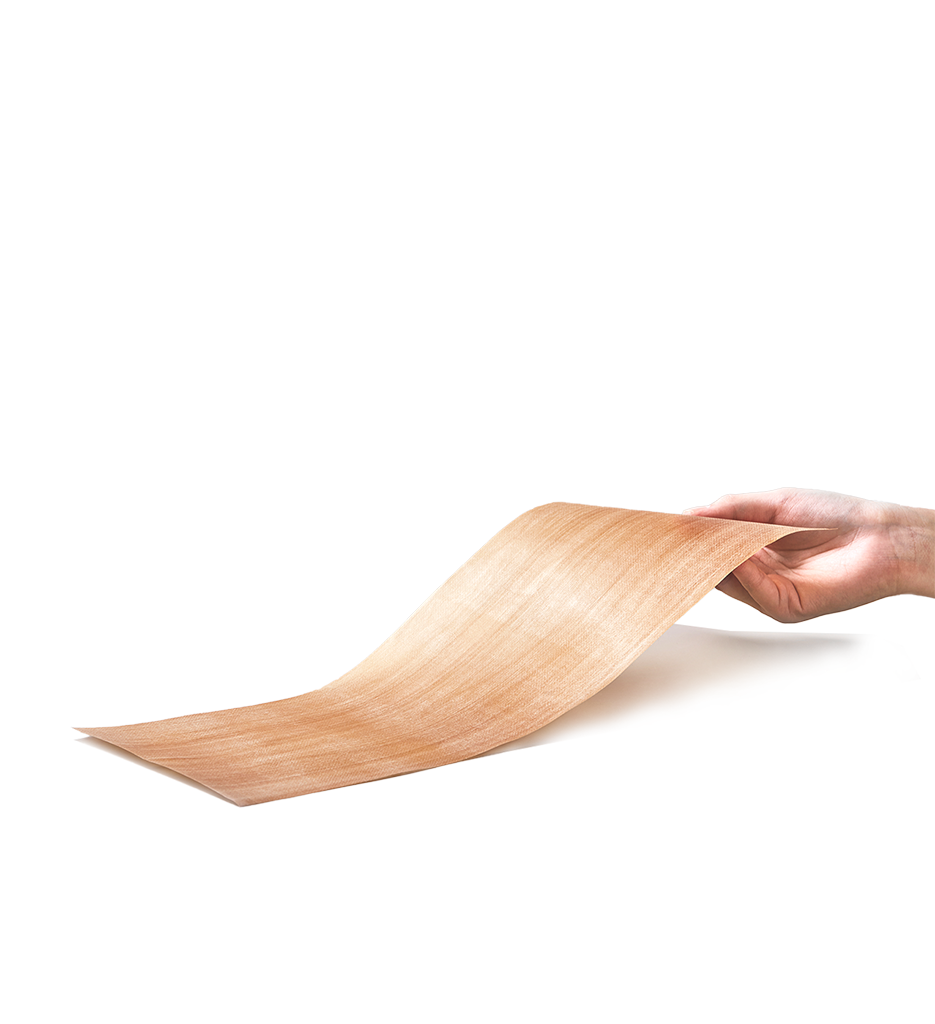

HiWood Wood Fiber Paper (UD)

https://shop.freshape.com/web/image/product.template/188/image_1920?unique=101d5c3

HiWood Paper is the first high-performance natural wood fiber reinforcement, uniquely crafted into thin sheets of paper for use in composite applications. It combines lightweight strength, unrivaled sustainability, and a visually appealing natural wood finish, making it a versatile material for a wide range of industries. HiWood Paper is fully biodegradable and recyclable, providing an environmentally responsible and efficient solution that meets the demands of modern manufacturers. This advanced material delivers a unique balance of mechanical strength and aesthetic value, ensuring that end products benefit from both durability and visual appeal. Ideal for industries such as automotive, aerospace, furniture, and building materials, HiWood Paper empowers manufacturers to create innovative products that meet performance standards while promoting sustainability. It is the perfect reinforcement for those aiming to balance high performance with eco-conscious design.

HiWood Fiber Paper (UD) is a continuous wood fiber reinforcement engineered in a thin paper format. Designed for versatile composite fabrication, it enables the creation of high-performance wood fiber-reinforced structures using techniques like hand layup, with or without applied pressure. Its exceptional mechanical properties make it ideal for manufacturing lightweight, structurally robust components. This wood fiber paper comes in two thickness options: 0.08mm (63g/cm²) and 0.12mm (130g/cm²).

Price listed below is per SQM

Contact Us​​​​

0.00 CHF 0.0 CHF 0.00 CHF

0.00 CHF

Not Available For Sale

  • Thickness

此组合不存在。

联系我们


45GPa

Material performance

Sustainable

bio-based, biodegradable
 and recyclable

4.2% - 4.5%

Loss factor

<1.3g/cm³

Density
  • KEY ADVANTAGES

    • Excellent specific strength & modulus
    • Superior vibration damping
    • Wood aesthetic appearance
    • Easy to process
    • Environmentally friendly

  • ADVANCED WOOD MODIFICATION TECHNOLOGY

    Wood's naturally rigid cellulose structure offers inherent strength. HiWood uses advanced wood modification technology to enhance its properties, achieving superior strength, durability, and fire resistance, making HiWood an exceptionally versatile and high-performance material.

SPECIFICATIONS – 63g / m2

Length

1200-1500 mm

Width

120-220 mm

Consolidated thickness*

0.055~0.065 mm

Fiber direction

UD along length

Color

Natural wood

Surface texture

Natural wood

COMPOSITION

Wood

100%

% Bio-content

100%

% Recyclability

100%

% Biodegradability

100%

*It is measured at a molding pressure of 0.8 MPa. Please adjust the number of layers based on the actual batch thickness and molding pressure.

SPECIFICATIONS – 130g / m2

Length

1200-1500 mm

Width

120-220 mm

Consolidated thickness*

0.083~0.095 mm

Fiber direction

UD along length

Color

Natural wood

Surface texture

Natural wood

COMPOSITION

Wood

100%

% Bio-content

100%

% Recyclability

100%

% Biodegradability

100%

​

TYPICAL PHYSICAL AND MECHANICAL PROPERTIES

68g / m2

Density

1.35-1.45 g/cm3

Areal density

60-76 g/m2

Tensile strength

420-650 Mpa

Tensile modulus

55-75 Gpa

Note: Tensile properties were theorized from the known rule of mixture based on the tensile measurements of laminate manufactured from wood fiber papers. They should serve only as guidelines. Performance is affected by equipment, environmental conditions, etc.

TYPICAL PHYSICAL AND MECHANICAL PROPERTIES

130g / m2

Density

1.35-1.45 g/cm3

Areal density

110-150 g/m2

Tensilte strength

420-650 Mpa

Tensile modulus

55-75 Gpa

  • RECOMMENDED MANUFACTURING METHODS

  • COMPRESSION MOLDING
    Place the HiWood Prepreg into the mold cavity, close the mold, and apply pressure while heating to allow the resin to flow and fill the cavity. After cooling, the cured product is easily demolded. This efficient and versatile process supports the mass production of high-precision, high-performance HiWood composite products.

  • AUTOCLAVE MOLDING
    Trim the HiWood Prepreg to size, layer it on the mold, and compact it. Then, place it in a pressure chamber where it is formed under controlled heat and pressure, allowing the prepreg to melt. This method produces high-quality HiWood composite parts with precise tolerances and minimal void content, ensuring optimal mechanical performance.

  • HAND LAY-UP
    HiWood Prepreg and HiWood Fiber Paper are suitable for this process. the HiWood materials are laid on the mold and heated to melt the prepreg, or resin is applied with brushes and rollers. This cost-effective method is versatile for producing various HiWood composite products, from small to large sizes.

  • VACCUM BAGGING
    Lay the HiWood Prepreg onto the mold surface and cover it with a vacuum bag film. Apply vacuum pressure to remove trapped air and compact the layers. The assembly is then heated, typically in an oven, to cure the resin. This method enhances fiber-resin contact and reduces void content, resulting in strong, lightweight HiWood composite parts with consistent quality. Vacuum bagging is well-suited for complex geometries and medium-volume production.

​

For complete information, please download the TDS PDF file. If you have any further questions about the product or its application, feel free to contact us directly — we’re here to help.


TDS incl. manual HiWood Fiber Paper (UD), 63g

 Download

TDS incl. manual HiWood Fiber Paper (UD), 130g

 Download

Engineered to Outperform.

Engineered to Outperform.

Stronger Than Flax. Still Natural.

HiWood

Reengineering wood's natural properties delivers groundbreaking stiffness and flexural strength.

+40 GPa

HiWood reinforced composite.


~20 GPa

Flax fiber reinforced composite.


Flax Fiber

Limited mechanical performance has restricted widespread adoption in high-performance applications.

The Natural Fiber Upgrade: HiWood.

HiWood

Reengineering wood's natural properties delivers groundbreaking stiffness and flexural strength.

+40 GPa

HiWood reinforced composite.

~20 GPa

Flax fiber reinforced composite.

Flax Fiber

Limited mechanical performance has restricted widespread adoption in high-performance applications.

The Natural Fiber Upgrade: HiWood.

Excellent
specific strength
& modulus.

Twice the strength.
Half the weight.

Good vibrational
damping.

Naturally quiet.
Remarkably stable.

Warm wood
aesthetic.

Looks like wood.
Performs beyond.

Easy
to process.

Shape it. Cut it.
Seamlessly.

100%
Bio-based.

Fully circular.
Beautifully sustainable.

Environmentally
friendly.

Nature approved.
Performance guaranteed.
